Chunking Large Datasets

Introduction

When it comes to working with larger datasets one of the best you can apply to any problem is chunking. Divide the dataset into smaller chunks and process them. It comes in many different forms. In this chapter, we’re going review a few of them but the basic idea is always the same: divide your data into smaller chunks and process them.

Your data, built your way.

Twilio Segment. For data you can depend on.

We know you run your business on data, so you better be able to depend on it.

Twilio Segment was purpose-built so that you don’t have to worry about your data. Forget the data chaos, dissolve the silos between teams and tools, and bring your data together with ease.

Learn more

Exports

Exporting to CSV or XLS and importing from them are very common features in modern applications.

I’m going to use a finance application as an example. Something like Paddle or Gumroad. They are merchant of records:

This is what’s happening:

• A seller (or content creator) uploads a product to Paddle

• They integrate Paddle into their landing page

• Buyers buy the product from the landing page using a Paddle checkout form

• Paddle pays the seller every month

I personally use Paddle to sell my books and SaaS and it’s a great service. The main benefit is that you don’t have to deal with hundreds or thousands of invoices and VAT ramifications. Paddle handles it for you. They send an invoice to the buyer and apply the right amount of VAT based on the buyer’s location. They also handle VAT ramifications. You, as the seller, don’t have to deal with any of that stuff. They just send you the money once every month and you have only one invoice. It also provides nice dashboards and reports.

Every month they send payouts to their users based on the transactions. They also send a CSV that contains all the transactions in the given month.

This is the problem we’re going to imitate in this post. Exporting tens of thousands of transactions in an efficient way.

This is what the `transactions` table looks like:

These are two transactions for user #1. I shortened some UUIDs so the table fits the page better. Most columns are pretty easy to understand. Money values are stored in cent values so `3900` means `$39`. There are other rows as well, but they are not that important.

When it is payout time, a job queries all transactions in a given month for a user, creates a `Payout` object, and then sets the `payout_id` in this table. This way we know that the given transaction has been paid out. The same job exports the transactions for the user and sends them via e-mail.

`laravel-excel` is one of the most popular frameworks when it comes to imports/exports so we’re going to use it in the first example.

This is what a typical export looks like:

namespace AppExports;

class TransactionsSlowExport implements FromCollection, WithMapping, WithHeadings
{
  use Exportable;

  public function __construct(
    private User $user,
    private DateInterval $interval,
  ) {}

  public function collection()
  {
    return Transaction::query()
      ->where('user_id', $this->user->id)
      ->whereBetween('created_at', [
        $this->interval->startDate,
        $this->interval->endDate,
      ])
      ->get();
  }

  public function map($row): array
  {
    return [
      $row->uuid,
      Arr::get($row->product_data, 'title'),
      $row->quantity,
      MoneyForHuman::from($row->revenue)->value,
      MoneyForHuman::from($row->fee_amount)->value,
      MoneyForHuman::from($row->tax_amount)->value,
      MoneyForHuman::from($row->balance_earnings)->value,
      $row->customer_email,
      $row->created_at,
    ];
  }

  public function headings(): array
  {
    return [
      '#',
      'Product',
      'Quantity',
      'Total',
      'Fee',
      'Tax',
      'Balance earnings',
      'Customer e-mail',
      'Date',
    ];
  }
}

I’ve seen dozens of exports like this one over the years. It creates a CSV from a collection. In the `collection` method, you can define your collection which is 99% of the time the result of a query. In this case, the collection contains `Transaction` models. Nice and simple.

However, an export such as this one, has two potential problems:

• The `collection` method runs a single query and loads **each and every** transaction into memory. The moment you exceed x number of models your process will die because of memory limitations. x of course varies highly.

• If your collection is not that big and the export made it through the query, the `map` function will run for **each and every** transaction. If you execute only one query here, it’ll run `n` times where `n` is the number of rows in your CSV. This is the breeding ground for N+1 problems.

Be aware of these things because it’s pretty easy to kill your server with a poor export.

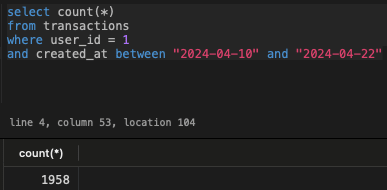

The above job has failed with only 2,000 transactions:

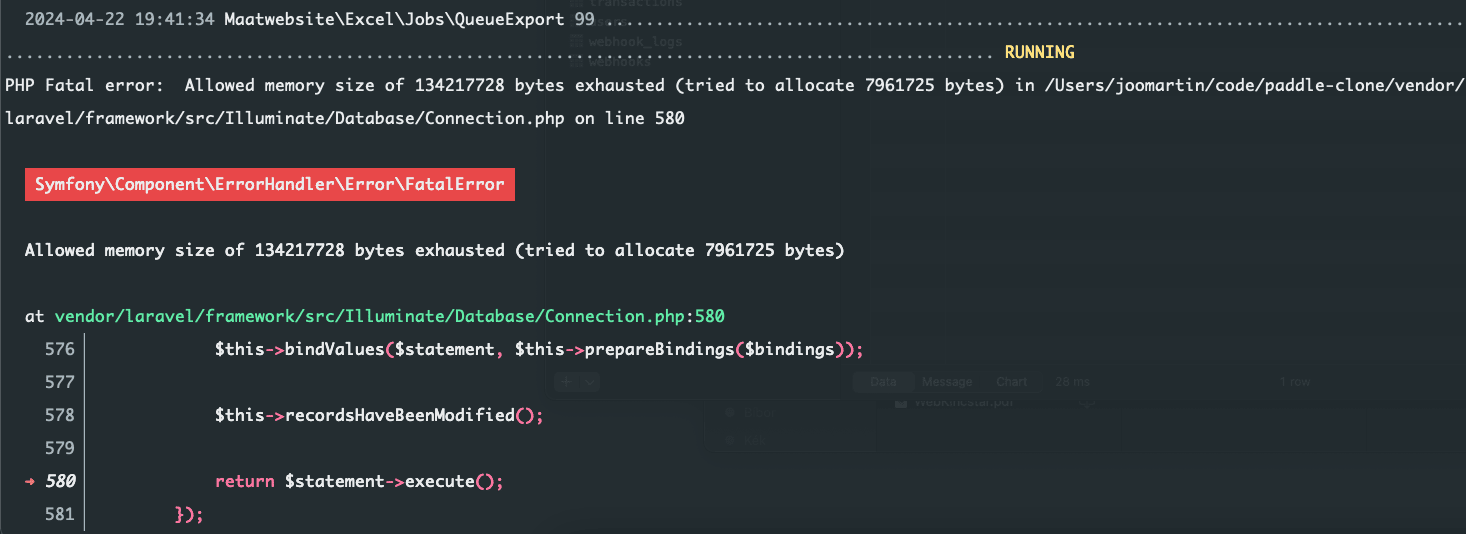

1,958 to be precise. The result is `Allowed memory size exhausted`:

As you can see, it is executed in a worker. This is possible by two things:

• The export uses the `Exportable` trait from the package, which has a `queue` function

• The method that runs the export uses this `queue` method:

new TransactionsExport(
    $user,
    $interval,
  )
  ->queue($report->relativePath())
  ->chain([
      new NotifyUserAboutExportJob($user, $report),
  ]);

This is how you can make an export or import queueable.

Fortunately, there’s a much better export type than `FromCollection`, it is called `FromQuery`. This export does not define a `Collection` but a DB query instead that will be executed in chunks by `laravel-excel`.

This is how we can rewrite the export class:

namespace AppExports;

class TransactionsExport implements FromQuery, WithHeadings, WithCustomChunkSize, WithMapping
{
  use Exportable;

  public function __construct(
    private User $user,
    private DateInterval $interval,
  ) {}

  public function query()
  {
    return Transaction::query()
      ->select([
        'uuid',
        'product_data',
        'quantity',
        'revenue',
        'fee_amount',
        'tax_amount',
        'balance_earnings',
        'customer_email',
        'created_at',
      ])
      ->where('user_id', $this->user->id)
      ->whereBetween('created_at', [
        $this->interval->startDate->date,
        $this->interval->endDate->date,
      ])
      ->orderBy('created_at');
  }

  public function chunkSize(): int
  {
    return 250;
  }

  public function headings(): array
  {
    // Same as before
  }

  public function map($row): array
  {
    // Same as before
  }
}

Instead of returning a `Collection` the `query` method returns a query builder. In addition, you can also use the `chunkSize` method. It works hand in hand with `Exportable` and `FromQuery`:

– Queued exports (using the `Exportable` trait and the `queue` method) are processed in chunks

– If the export implements `FromQuery` the number of jobs is calculated by `query()->count() / chunkSize()`

So in the `chunkSize` we can control how many jobs we want. For example, if we have 5,000 transactions for a given user and `chunkSize()` returns 250 which means that 20 jobs will be dispatched each processing 250 transactions. Unfortunately, I cannot give you exact numbers. It all depends on your specific use case. However, it’s a nice way to fine-tune your export.

Using the techniques above, exporting 10k transactions is a walk in the park

9,847 to be precise but the jobs are running smoothly. There are 40 jobs each processing 250 transactions:

The last jobs `larave-excel` runs are `CloseSheet` and `StoreQueuedExport`.

Imports

This is what a basic `laravel-excel` import looks like this:

namespace AppImports;

class UsersImport implements ToModel
{
  public function model(array $row)
  {
    return new User([
      'name' => $row[0],
    ]);
  }
}

It reads the CSV and calls the `model` method for each row then it calls `save` on the model you returned. It means that it executes **one query for each row.** If you’re importing thousands or tens of thousands of users you’ll spam your database and there’s a good chance it will be unavailable.

Fortunately, there are two tricks we can apply:

• Batch inserts

• Chunk reading

Batch inserts

Batch insert means that `laravel-excel` won’t execute one query per row, but instead, it batches the rows together:

namespace AppImports;

class UsersImport implements ToModel, WithChunkReading
{
  public function model(array $row)
  {
    return new User([
      'name' => $row[0],
    ]);
  }

  public function batchSize(): int
  {
    return 500;
  }
}

This will execute x/500 inserts where x is the number of users.

Chunk reading

Chunk reading means that instead of reading the entire CSV into memory at once `laravel-excel` chunks it into smaller pieces:

namespace AppImports;

class UsersImport implements ToModel, WithChunkReading
{
  public function model(array $row)
  {
    return new User([
      'name' => $row[0],
    ]);
  }

  public function chunkSize(): int
  {
    return 1000;
  }
}

This import will load 1,000 users into memory at once.

Of course, these two features can be used together to achieve the best performance:

namespace AppImports;

class UsersImport implements ToModel, WithBatchInserts, WithChunkReading
{
  public function model(array $row)
  {
    return new User([
      'name' => $row[0],
    ]);
  }

  public function batchSize(): int
  {
    return 500;
  }

  public function chunkSize(): int
  {
    return 1000;
  }
}

Generators & LazyCollections

What if you can’t or don’t want to use `laravel-excel` to import a large CSV? We can easily read a CSV in PHP:

public function readCsv(string $path): Collection
{
  $stream = fopen($path, 'r');

  if ($stream === false) {
      throw new Exception('Unable to open csv file at ' . $path);
  }

  $rows = [];
  $rowIdx = -1;
  $columns = [];

  while (($data = fgetcsv($stream)) !== false) {
    $rowIdx++;

    if ($rowIdx === 0) {
      $columns = $data;

      continue;
    }

    $row = [];

    foreach ($data as $idx => $value) {
      $row[$columns[$idx]] = $value;
    }

    $rows[] = $row;
  }

  fclose($stream);

  return collect($rows);
}

`fgetcsv` by default reads the file line by line so it won’t load too much data into memory, which is good.

This function assumes that the first line of the CSV contains the headers. This block saves them into the `$columns` variable:

if ($rowIdx === 0) {
  $columns = $data;

  continue;
}

`$column` is an array such as this:

[
  0 => 'username',
  1 => 'email',
  2 => 'name',
]

`fgets` returns an indexed array such as this:

[
  0 => 'johndoe',
  1 => 'johndoe@example.com',
  2 => 'John Doe',
]

The following block transforn this array into an associative one:

$row = [];

foreach ($data as $idx => $value) {
  $row[$columns[$idx]] = $value;
}

$rows[] = $row;

At the end, the function closes the file, and returns a collection such as this:

[
  [
    'username' => 'johndoe',
    'email' => 'johndoe@example.com',
    'name' => 'John Doe',
  ],
  [
    'username' => 'janedoe',
    'email' => 'janedoe@example.com',
    'name' => 'Jane Doe',
  ],
]

It’s quite simple, but it has one problem: it holds every row in memory. Just like with `laravel-excel` it will exceed the memory limit after a certain size. There are two ways to avoid this problem:

• PHP generators

• Laravel’s LazyCollection

Since `LazyCollections` are built on top generators, let’s first understand them.

PHP generators

With a little bit of simplification, a generator function is a function that has multiple `return` statements. But instead of `return` we can use the `yield` keyword. Here’s an example:

public function getProducts(): Generator
{
  foreach (range(1, 10_000) as $i) {
    yield [
      'id' => $i,
      'name' => "Product #{$i}",
      'price' => rand(9, 99),
    ];
  }
}

foreach (getProducts() as $product) {
  echo $product['id'];
}

Any function that uses the `yield` keyword will return a `Generator` object which implements the `Iterable` interface so we can use it in a foreach.

Each time you call the `getProducts` function you get exactly **one product** back. So it won’t load 10,000 products into memory at once, but only one.

The function above behaves the same as this one:

public function getProducts(): array
{
  $products = [];

  foreach (range(1, 10000) as $i) {
    $products[] = [
      'id' => $i,
      'name' => "Product #{$i}",
      'price' => rand(9, 99),
    ];
  }

  return $products;
}

But this function will load 10,000 products into memory each time you call it.

Here’s the memory usage of the standard (non-generator) function:

It reached the 128MB memory limit with 300,000 items. And these items are lightweight arrays with only scalar attributes! Imagine Eloquent models with 4-5 different relationships, attribute accessors, etc.

Now let’s see the memory usage of the generator-based function:

It can handle 2,000,000 items using only 65MB of RAM. It’s 20 times more than what the standard function could handle. However, the memory usage is only 32% higher (65M vs 49M).

Imports with generators

Now let’s add a generator to the `readCsv` function:

while (($data = fgetcsv($stream, 1000, ',')) != false) {
  $rowIdx++;

  if ($rowIdx === 0) {
    $columns = $data;

    continue;
  }

  $row = [];

  foreach ($data as $idx => $value) {
    $row[$columns[$idx]] = $value;
  }

  yield $row;
}

The whole function is identical except that it’s not accumulating the data in a `$rows` variable but instead, it yields every line when it reads it.

In another function we can use it as it was a standard function:

$transactions = $this->readCsv();

foreach ($transactions as $transaction) {
  // ...
}

This is the equivalent of chunk reading in `laravel-excel`. Now let’s implement batch inserts as well.

This would be the traditional one-insert-per-line solution:

$transactions = $this->readCsv();

foreach ($transactions as $transaction) {
  Transaction::create($transaction);
}

It runs one DB query for each CSV line. It can be dangerous if the CSV contains 75,000 lines, for example.

So instead, we can batch these into bigger chunks:

$transactions = $this->readCsv();
$transactionBatch = [];

foreach ($transactions as $i => $transaction) {
  $transactionBatch[] = $transaction;

  if ($i > 0 && $i % 500 === 0) {
    Transaction::insert($transactionBatch);

    $transactionBatch = [];
  }
}

if (!empty($transactionBatch)) {
  Transaction::insert($transactionBatch);
}

It accumulates transactions until it hits an index that can be divided by 500 then it inserts 500 transactions at once. It there were 1,741 transactions for example, the `insert` after the loop inserts the remaining 241.

With generators and a little trick, we achieved the same two things as with `laravel-excel`:

• Loading only one line into memory at once

• Chunking the database writes

Imports with LazyCollections

`LazyCollection` is a combination of collections and generators. We use it like this:

$collection = LazyCollection::make(function () {
  $handle = fopen('log.txt', 'r');

  while (($line = fgets($handle)) !== false) {
    yield $line;
  }
});

It works the same way as Generators but the `make` function returns a `LazyCollection` instance that has lots of useful `Collection` methods such as `map` or `each`.

Our example can be rewritten as this:

public function readCsv(): LazyCollection
{
  return LazyCollection::make(function() {
    $stream = fopen(storage_path('app/transactions.csv'), 'r');

    if ($stream === false) {
      throw new Exception('Unable to open csv file at ' . storage_path('app/transactions.csv'));
    }

    $rowIdx = -1;
    $columns = [];

    while (($data = fgetcsv($stream, 1000, ',')) != false) {
      $rowIdx++;

      if ($rowIdx === 0) {
        $columns = $data;

        continue;
      }

      $row = [];

      foreach ($data as $idx => $value) {
        $row[$columns[$idx]] = $value;
      }

      yield $row;
    }
  });
}

The function that uses the `readCsv` method now looks like this:

$this->readCsv()
  ->chunk(500)
  ->each(function(LazyCollection $transactions) {
    Transaction::insert($transactions->toArray());
  });

We can leverage the built-in `chunk` method that chunks the result by 500.

Once again, we achieved two things:

• Loading only one line into memory at once

• Chunking the database writes

Performance with Laravel

This whole post comes from my book Performance with Laravel. It’s a 362-page book that teaches you everything I know about performance and Laravel:

• Measuring performance

• Advanced Redis

• Advanced database indexing

• Designing performant and reliable architectures

• Async workflows

• Optimizing jobs and workers

• Concurrent programming

• Working with large datasets

• Export and imports

• Decreasing memory consumption

• nginx. fmp, cgi

Check it out if you’ want to speed up your application.

Read More

Computer Science Simplified

Donate To AddressDonate Via Wallets

• Bitcoin
• Ethereum
• Monero

Donate Bitcoin to The Bitstream

Scan the QR code or copy the address below into your wallet to send some Bitcoin to The Bitstream

Tag/Note:- Send Bitcoin (BTC)

Reveal QR Code

Donate Ethereum to The Bitstream

Scan the QR code or copy the address below into your wallet to send some Ethereum to The Bitstream

Tag/Note:- Send Ethereum (ETH)

Reveal QR Code

Donate Monero to The Bitstream

Scan the QR code or copy the address below into your wallet to send some Monero to The Bitstream

Tag/Note:- Send Monero (XMR)

Reveal QR Code

Donate Via Wallets

Select a wallet to accept donation in ETH BNB BUSD etc..

•
  MetaMask
•
  Trust Wallet
•
  Binance Wallet
•
  WalletConnect
